Technical characteristics
Overview

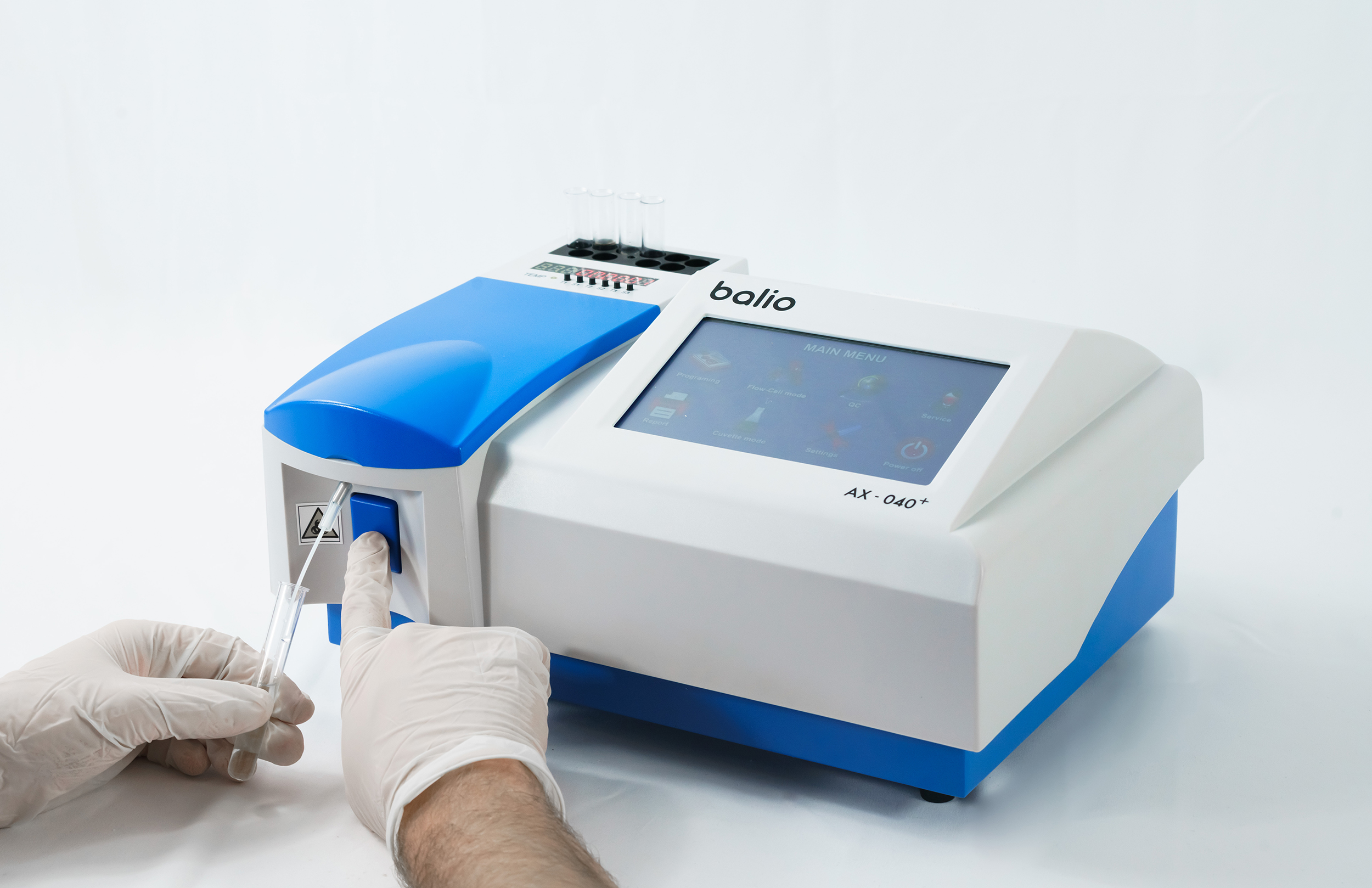

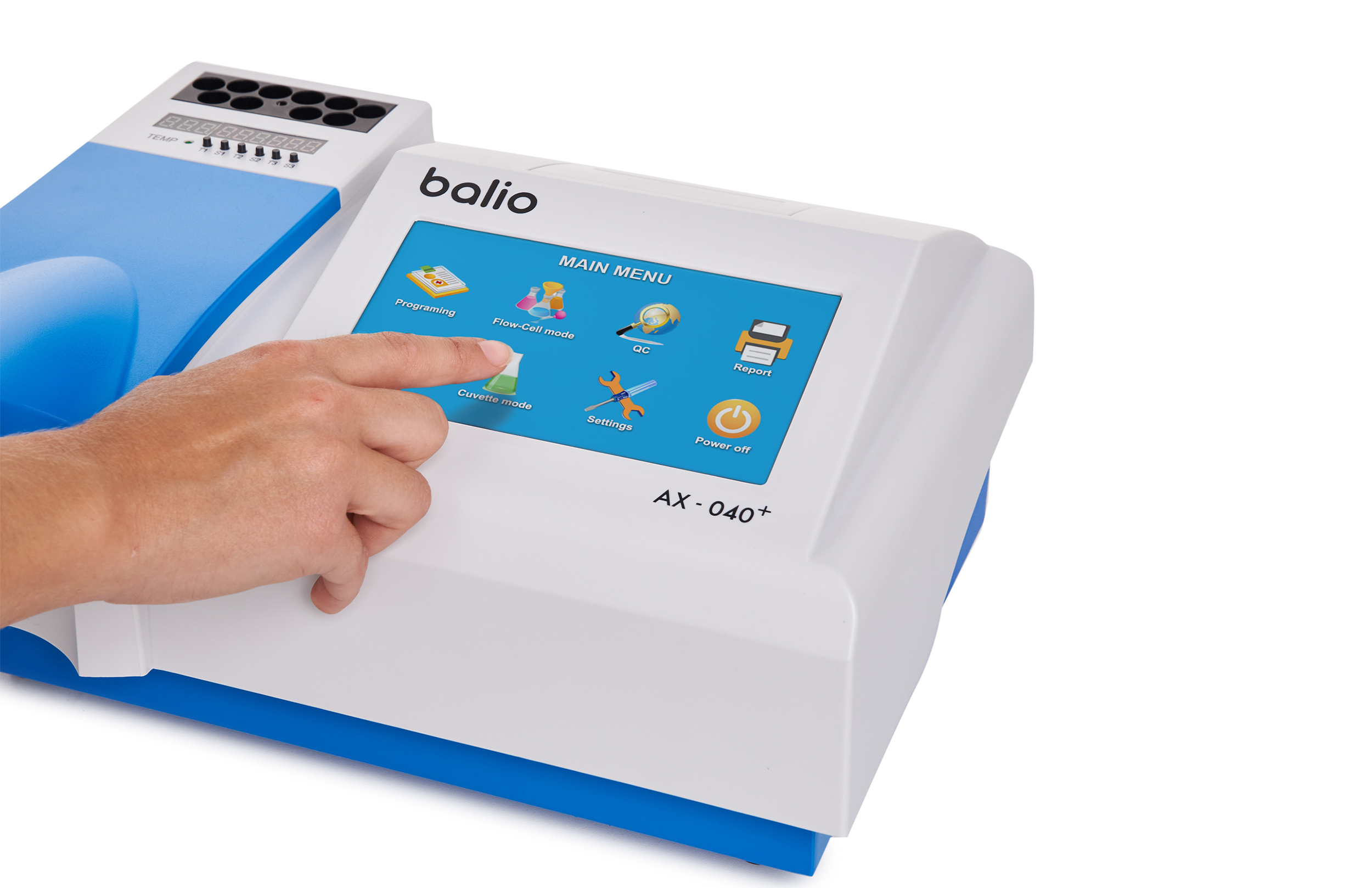

Semi-automatic biochemistry analyzer or programmable spectrophotometer.
Measurement methodologies kinetic, end point, two points
Optical system
8 filters
340, 405, 492, 510, 546, 578, 630 nm and 1 free position
Wavelength precision
+/- 2 nm, width ≤ 10 nm
Stray light
< 0.1% 340 nm
Absorbance range
0 to 4.5 ABS
Absorbance precision
outside 0.001 ABS and inside 0.0001 ABS
Specifications
Sample volume range
0 –3000 μL, 400 μL recommanded
Quality control
average, SD and CV% calculations, Levey-Jeninngs diagram
