Technical characteristics
Overview
Multiparametric biochemistry automat with a constant throughput of 300 tests per hour.
Principles: colorimetry and turbidimetry.
Calibration: linear and non-linear.
Sample management

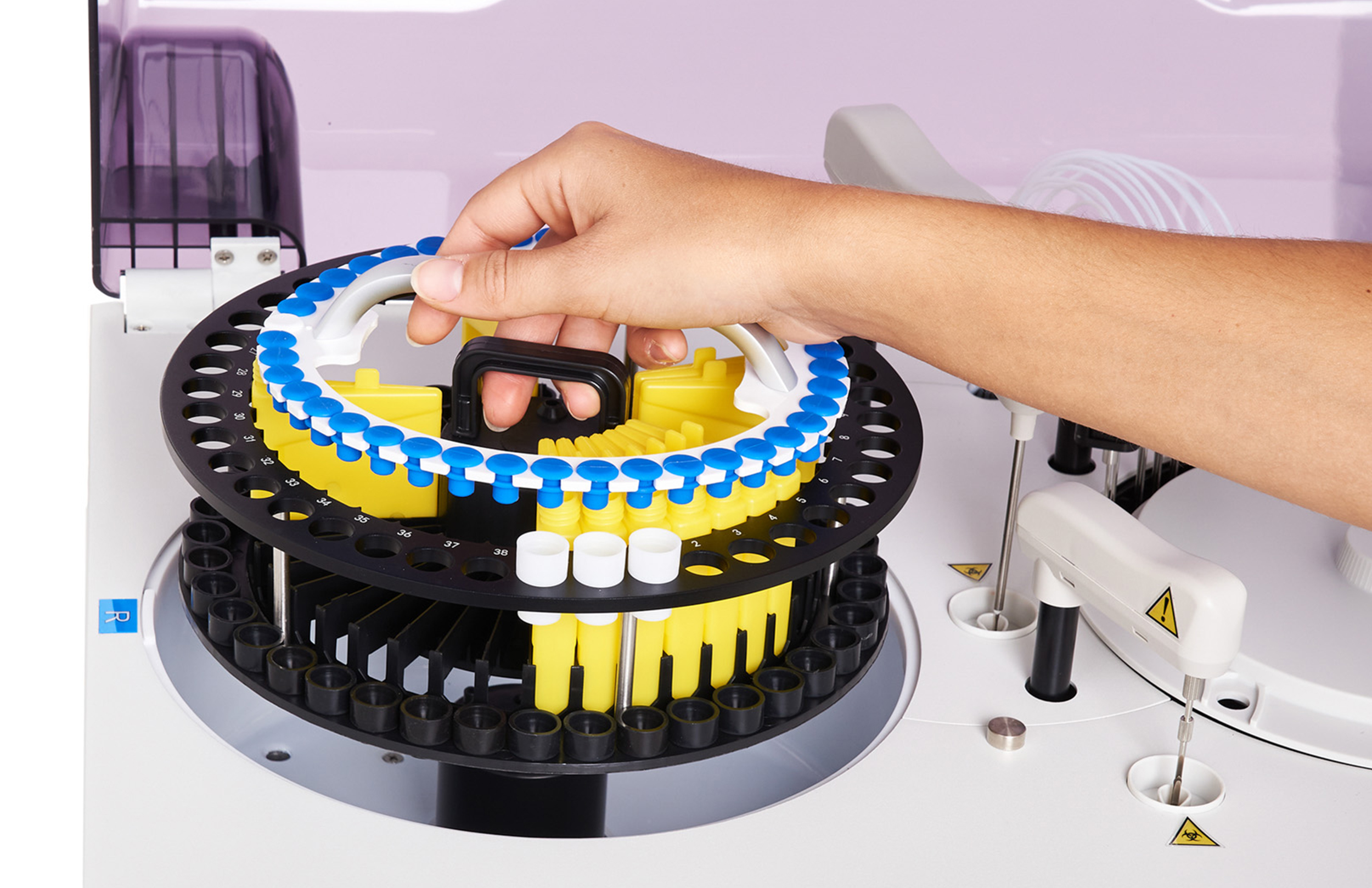

Sample holders
Micro-cup, test tube, and blood collection tube.
Sample volume
2 – 30 µL with 0.1 µL increments.

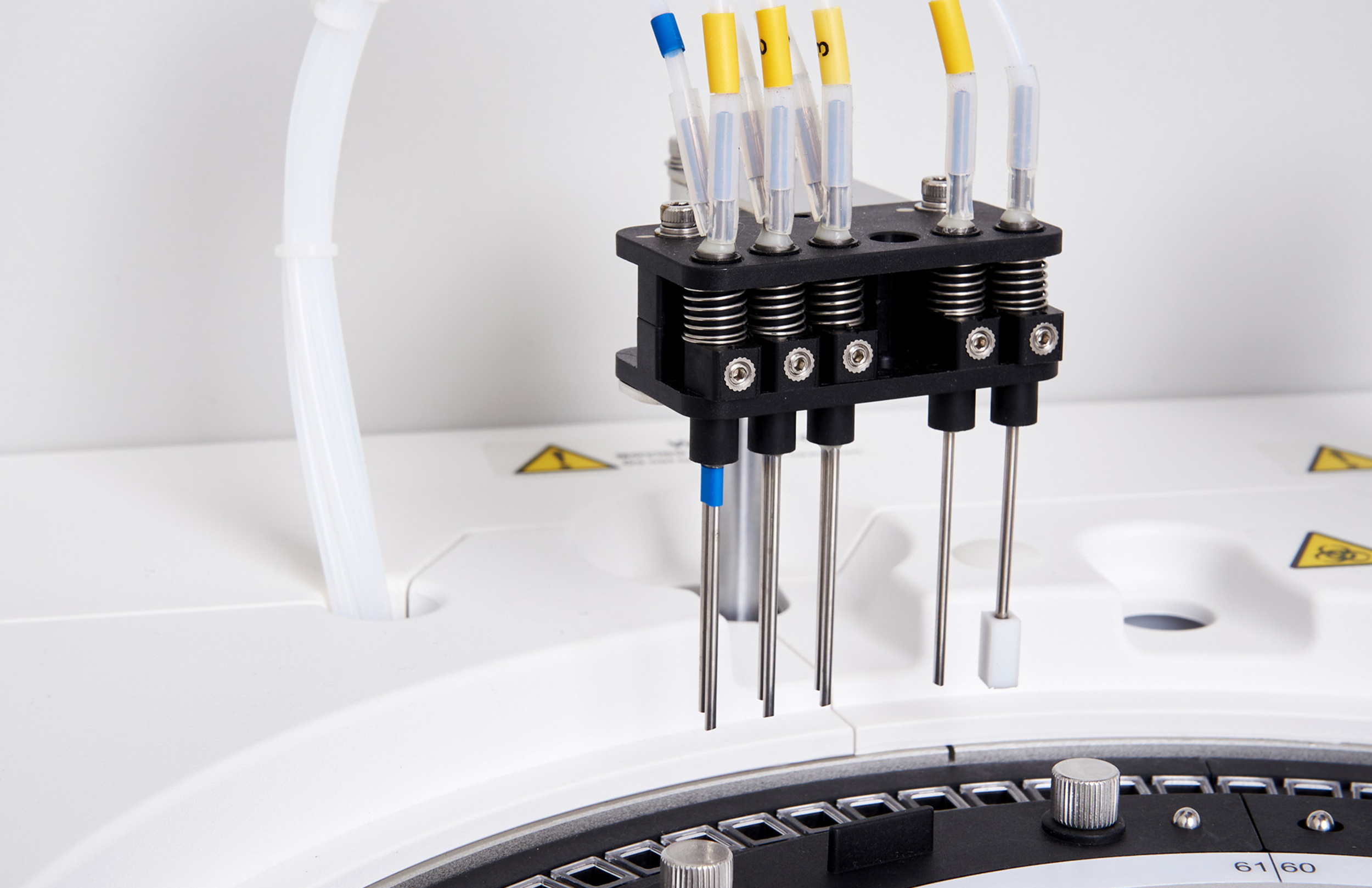

Probe features
Liquid surface detection, liquid volume surveillance, and collision avoidance.
Reagents system
Refrigeration
Non-stop Peltier cooling system.
Sample volume
20 – 300 µL with 1 µL increments.
Reaction volume
150 – 330 µL.
Possible configurations
Closed system
Ready-to-use reagents, 50 reagent and sample positions, barcode readers available.
Open system
Standard reagents, 70 reagent positions, 70 sample positions, barcode reader for samples.
Extended capacity
70 reagent and sample positions with barcode reader available for samples.
