Technical characteristics
Overview
5-part DIFF analyzer with 27 parameters.
Measurement principles: flow cytometry, impedance method, and colorimetry.
Cyanide-free reagents.
Displays 3 histograms and 3 scattergrams.
Specifications

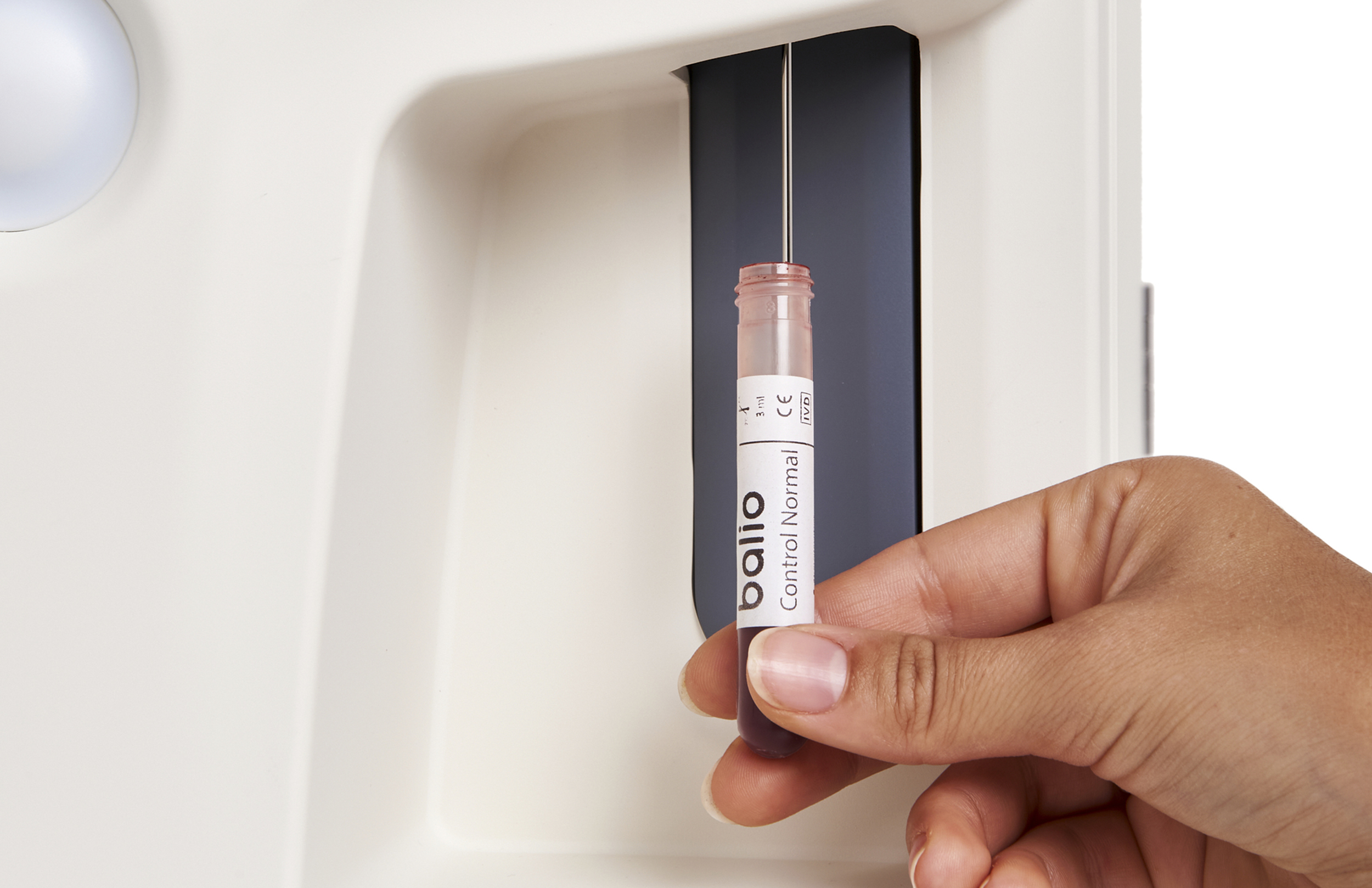

Sample volume
15 µL in whole blood mode.
Storage capacity
Stores up to 100,000 results with graphs.
WBC & basophil
Independent channel for WBC counting and isolated basophil reading.

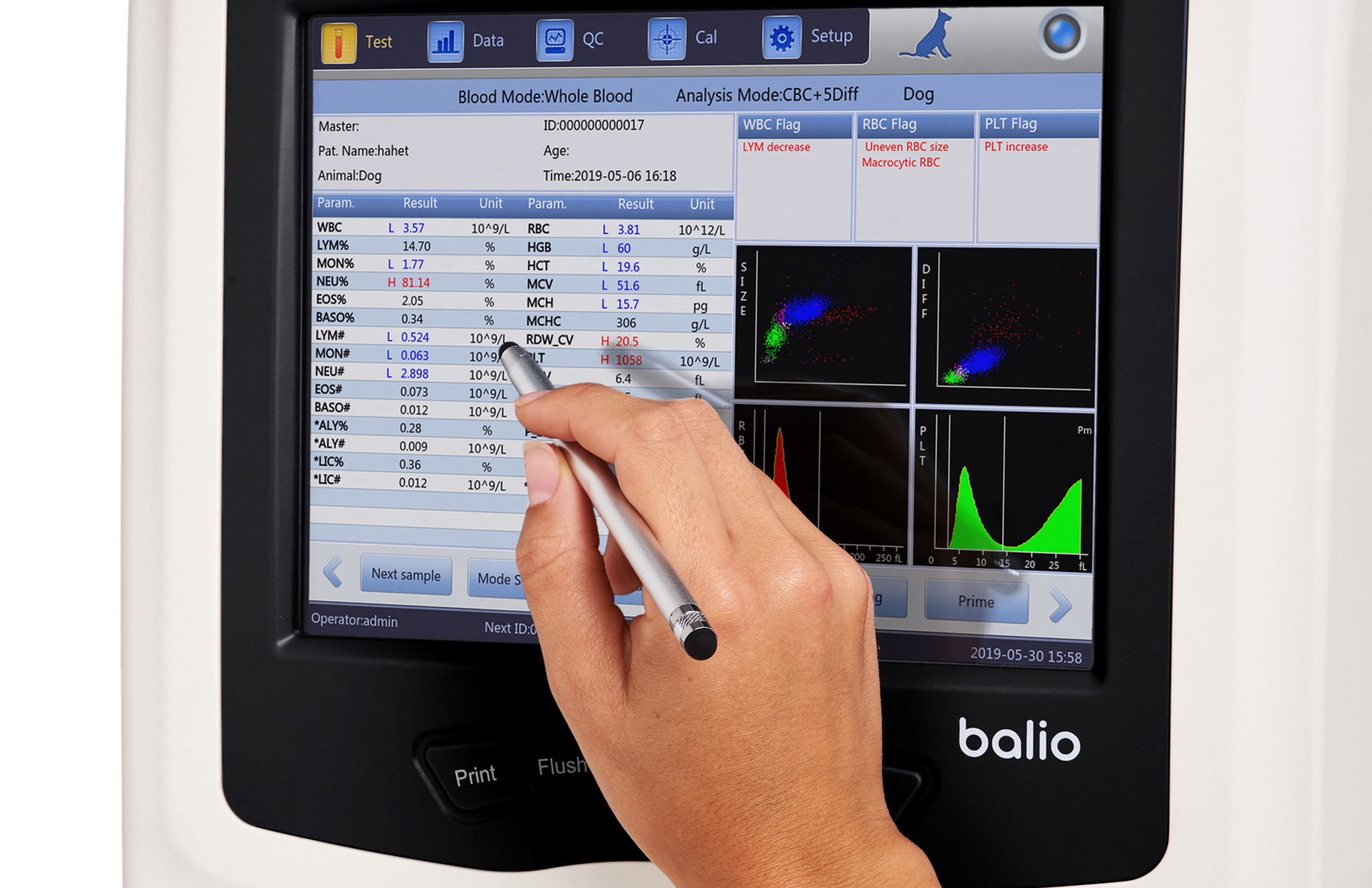

Display
10.4” high-resolution touch screen.
Connectivity
4× USB ports; bidirectional LIS connection supported.
Analytical performances
Repeatability (CV)
GB ≤ 2%
HGB ≤ 1.5%
MCV ≤ 1.0%
GR ≤ 1.5%
PLT ≤ 4%
